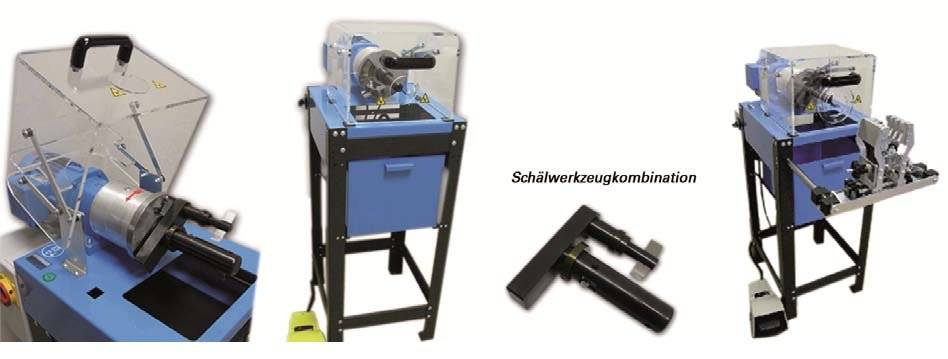

Special advantages:

•For Simultaneous skiving (external and internal at the same time)
• Easy adjustable tools (skiving length and depth)
• Quick change system
• Limit switch protection
• Operated by foot pedal
• Gives you a clean and precise skiving result
• Table included (ST-model)
• Holding device for hoses DN 06 (1/4”) up to DN 50 (2”) (only on –SV model)

Operating Range: External skiving:

• Hydraulic hose from DN 06 (1/4”) up to DN 50 (2”)

Operating Range: Internal skiving:
• Hydraulic hoses from DN 20 (3/4”) up to DN 50 (2”)
• Special skiving tool for DN 13 (1/2”) and DN 16 (5/8”) on request

Technical data:

Dimensions in mm: width 400, depth 910, height 1095, incl. table
Electric supply: 380V, 50Hz, 3Ph / 0.55 KW, 184 rpm (309 rpm on –SV model)
Weight: 48 KG
