Special advantages:

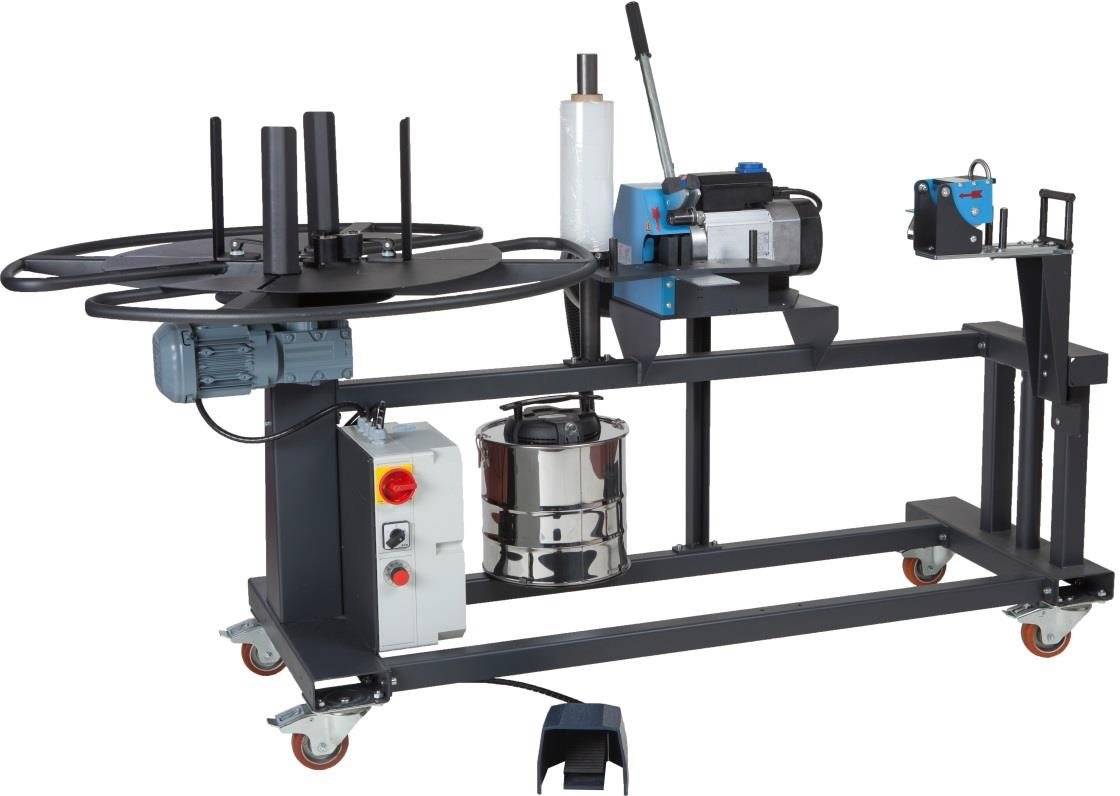

 Compact hose coiling, measuring and cutting unit
 One person operation possible
 Foot switch with speed control, for precise coiling
 Fast clamping system on the hose coiler
 Flexible possibilities for uncoiling
 Length tolerance: +/- 2%
 Brake wheels, for stabile working
 Cutting machine SM 210-SL included
 Incl. spark arrester and suction unit
 Optional foil dispenser
 Tilting models available

Range of application:
 Hose DN 06 (1/4”) up to DN 20 (3/4”)
 Hose coil diameter max. 1000mm
 Max. load capacity 120 KG / hose roll

Technical data:
Dimensions in mm: width 2500, depth 800, height 1400
Electric supply: 230V, 50Hz, 1Ph, 0.37kw
Speed: from 0 to max. 36 rpm
Weight: 115 KG

Technical changes are reserved at any time
