Special advantages:

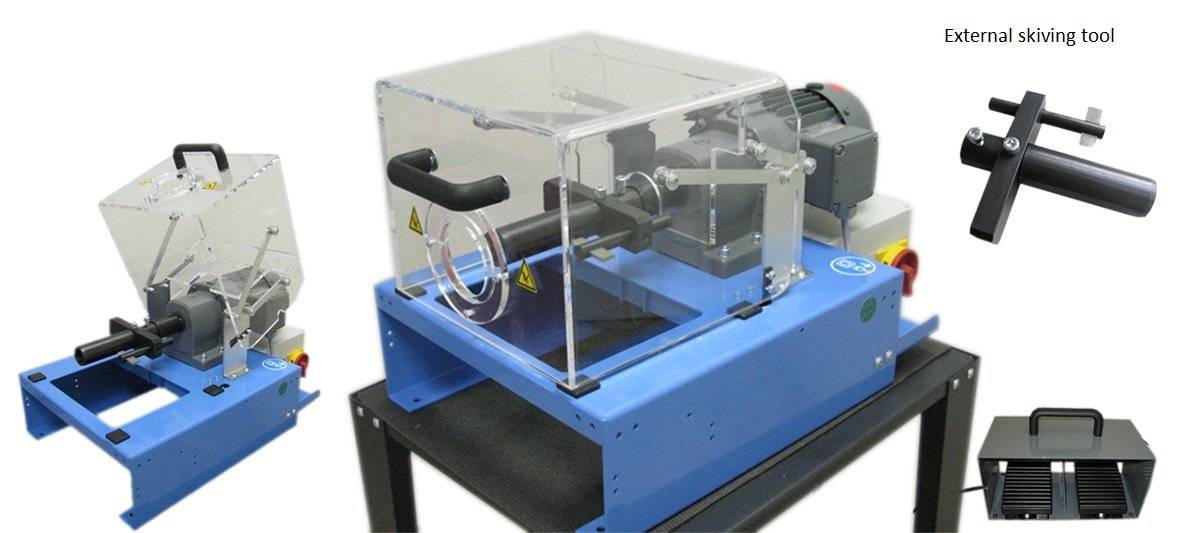

 Compact bench top mounted machine
 For external and internal skiving (not simultaneous)
 Easy adjustable tools (skiving length and depth)
 Quick change system
 Limit switch protection
 Operated by double foot switch, for left and right rotation
 Gives you a clean and precise skiving result

Operating Range: External skiving

 Hydraulic hoses from DN06 (1/4”) up to DN50 (2”)

Operating Range: Internal skiving

 Hydraulic hoses from DN20 (3/4”) up to DN50 (2”)
 Special skive tools for DN12 (1/2”) and DN16 (5/8”) request

Optional:

 Speed control (-vario): from 0 rpm up to max. 450 rpm
 Quick change tools from DN06 (1/4”) up to DN50 (2”)

Technical data:

Dimensions in mm: width 240, depth 760, height 330
Electric supply: 380V, 50Hz, 3Ph / 0.55 KW, 309 rpm
Weight: 30 KG

Technical changes are reserved at any time
